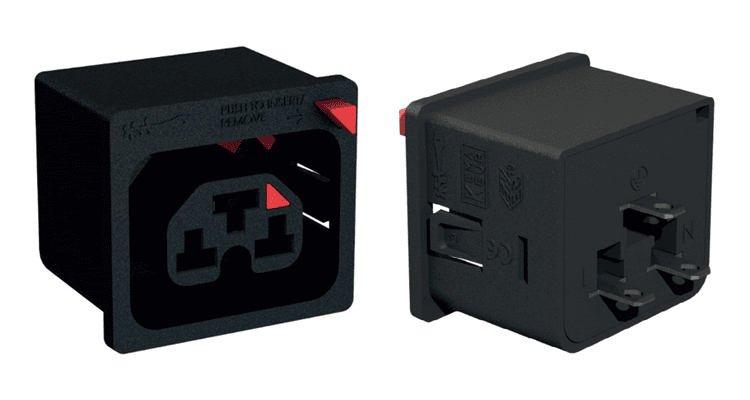

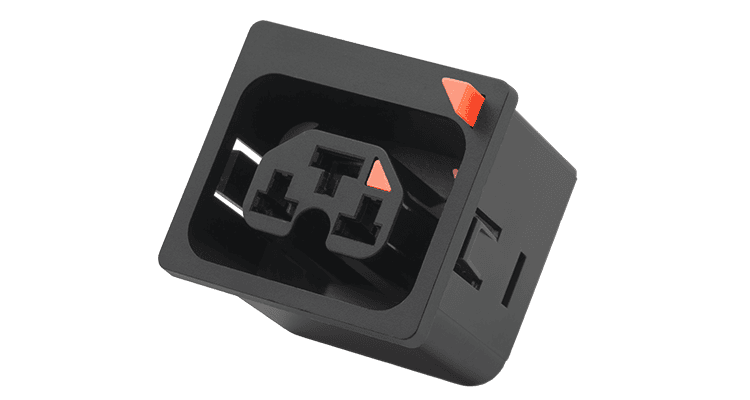

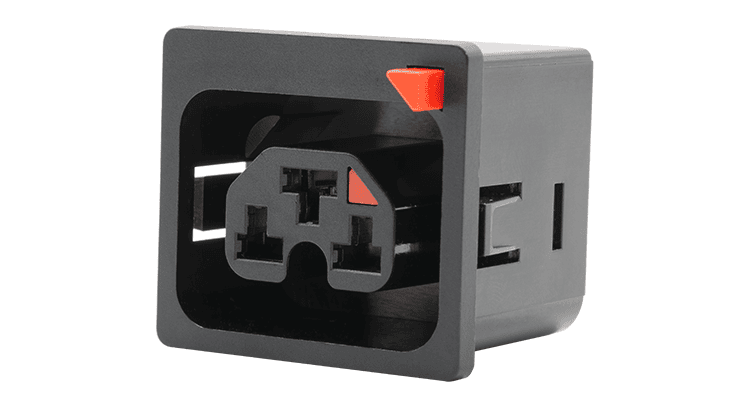

IEC CX Locking Socket

The latest offering from our locking socket range is the CX combined C13, C15, C19 & C21 outlet in one socket. This receptacle will accept a C14, C16, C20 or C22 plug giving ultimate flexibility in PDU design.
By having this combined socket at 1U intervals means that there is no longer a need to specify exact numbers and combinations of C19 or C13 sockets. Suitable for use in vertical or horizontal 19inch PDUs.

The locking mechanism prevents power cords being accidentally pulled out or working loose through vibration.
The CX socket is available from stock.

• Fits any standard C14, C16, C20 or C22 connectors
• Anti-Vibrate
• Integral plug retention feature
• Easy push button to release
• Available as individual socket components for PDU manufacturers
• Available in complete PDUs
• Temperature Rating -20°C To + 70°C
• Panel Thickness 1.5mm
• Aperture Cutout (38.0mm) x (34.5mm)
• Rating 10A/16A Max 250V~
